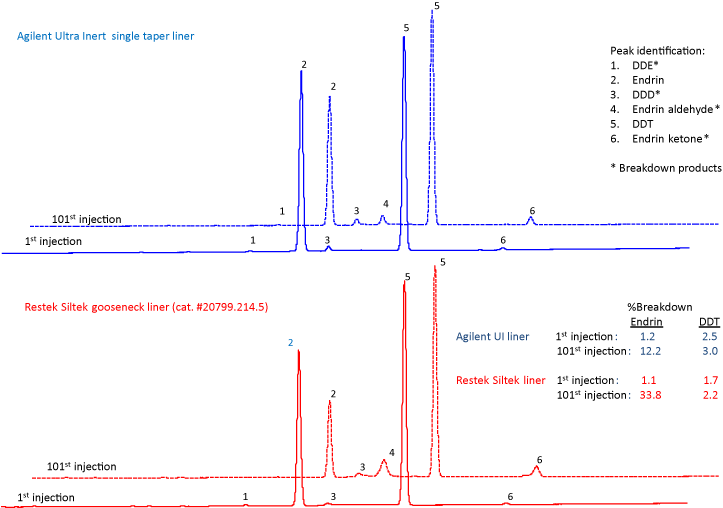

Access Agilent 図1

図 1 の拡大図



カラム: Agilent J&W HP-5ms ウルトライナート, 15 m x 0.25 mm, 0.25 µm
サンプル: Endrin/DDT 50/100 ng/mL in isooctane
注入口: 1 µL splitless 250℃ (hold 0.75 min)
オーブン: 120℃ (1 min) to 220℃ at 30℃/min, then to 280℃ at 8℃/min and hold 1 min
キャリアガス: He, 0.9 mL/min, constant flow
検出器: µECD 280℃, N2 make-up gas 60 mL/min constant column and makeup flow rate

優れた安定性と不活性を備えた Agilent ウルトライナート不活性ライナは、100 回の注入後も、エンドリン/DDT 分解テストに合格しています。
